Cell experiments project

Intro

The project is there to grow, add useful features, reflect an on prem capability landscape

See https://github.com/alfrepo/cell-project

The project is there to grow, add useful features, reflect an on prem capability landscape.

The goal: - use as many modern methods as possible - vibe coding - ai agents - define common dockerization patterns

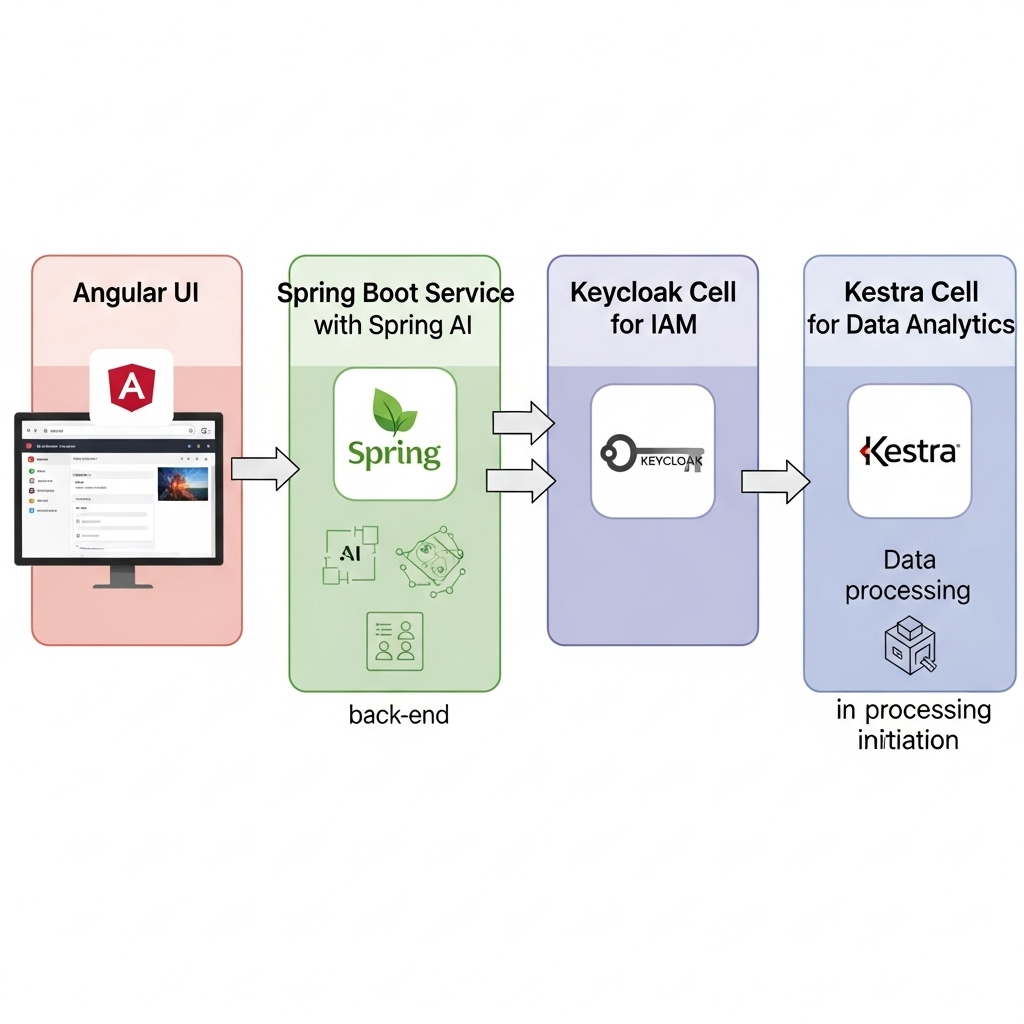

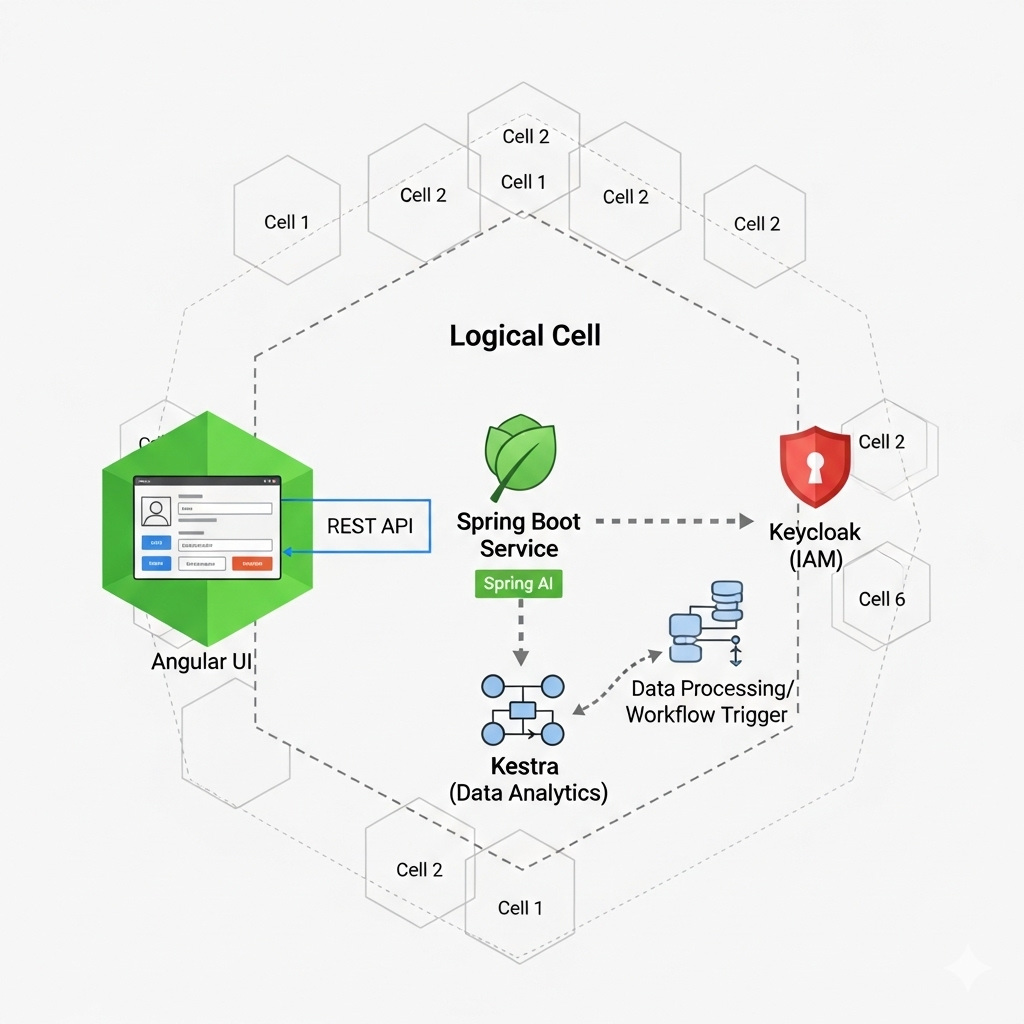

Scope and Context

Cell: Custom Spring Boot service

Spring Boot application

Feature: Spring AI

Demonstrating some of - Chat Completion - Embedding - Text to Image - Audio Transcription - Text to Speech - Moderation

https://spring.io/projects/spring-ai

projects-root/
├── digital.alf.customsbs/
│   ├── .gradle/
│   │   └── ...
│   ├── src/
│   │   ├── main/
│   │   │   ├── java/
│   │   │   │   └── digital/
│   │   │   │       └── alf/
│   │   │   │           └── customsbs/
│   │   │   │               ├── CustomSbsApplication.java
│   │   │   │               ├── config/
│   │   │   │               ├── controller/
│   │   │   │               ├── model/
│   │   │   │               ├── repository/
│   │   │   │               └── service/
│   │   │   └── resources/
│   │   │       ├── static/
│   │   │       └── application.yml
│   │   └── test/
│   │       └── java/
│   │           └── digital/
│   │               └── alf/
│   │                   └── customsbs/
│   ├── build.gradle
│   ├── Dockerfile
│   ├── gradlew
│   ├── gradlew.bat
│   └── settings.gradle
│
├── another-project/
│   └── ...
│
└── docker-compose.yml

Cell: Angular PrimeNG based UI & Progressive Web App

The UI with - desktop - mobile experience

Cell: Physical access control

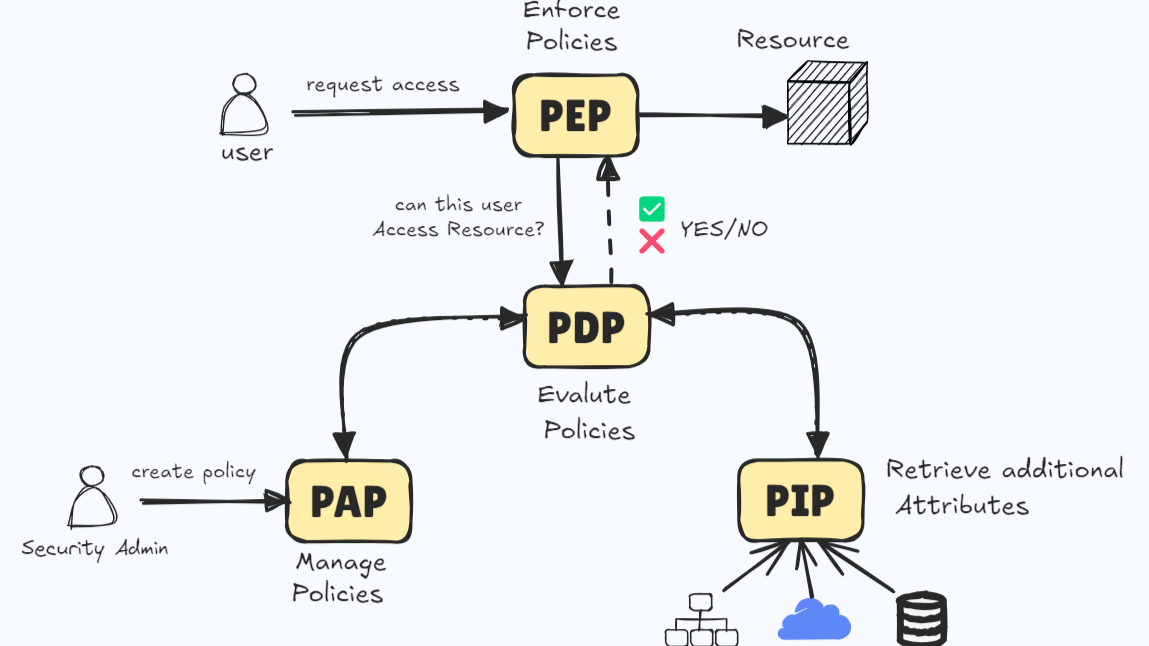

Should calculate physical access

• implementing "PIP" using ABAC
• interpreting into "PDP" using ACL
• and making decisions in "PEP"

Access Control Model Comparison: ACL vs. RBAC vs. ABAC

* ACLs are the oldest and simplest model. They attach a list of permissions directly to a resource (like a file or a network port).

* RBAC solves the scalability problem of ACLs by introducing an abstraction layer: the Role. You assign permissions to a role, and then assign users to that role.

* ABAC is the most modern and flexible. It removes the reliance on static roles and makes access decisions based on evaluating a policy against a set of real-time attributes.

Feature	Access Control Lists (ACL)	Role-Based Access Control (RBAC)	Attribute-Based Access Control (ABAC)
Core Principle	Resource-Centric: Explicitly lists who (user/group) can do what on this specific resource.	Role-Centric: Access is granted based on a user's job function (Role).	Policy-Centric: Access is granted based on a dynamic set of attributes.
Key Question Asked	"Can this specific user (or group) read this file?"	"What permissions does the role of 'Manager' have?"	"Can a user from the 'Sales' department, located in 'NY' (User Attribute), 'Write' (Action Attribute) to a file tagged 'Confidential' (Resource Attribute) between 9am and 5pm (Environment Attribute)?"
Granularity & Flexibility	Fine-grained but static: Great for a single resource, but cannot easily incorporate external context (like time of day).	Medium: Excellent for defining access based on functional duties, but poor at handling exceptions or dynamic, contextual rules.	Highly Granular and Dynamic: Supports complex, contextual rules that change in real-time based on any combination of attributes.

ACL

• Principal
• Action
• Resource
• Condition

Scenario	Principal	Action	Resource	Condition
1. Standard Employee Site Access	Group: Employees	Enter	Site: Main Campus Building A	Authentication: Successful Badge Swipe
2. Management Office Zone Access	Group: Managers	Enter/Exit	Zone: Executive Wing	Time: 08:00 to 18:00 (Weekdays)
3. Restricted Data Center Access	User: ID: 87654	Enter	Zone: Data Center - Rack 5	Certification: "Server Admin L3" is true $\wedge$ 2FA: Successful Bio-scan
4. Maintenance Zone Access (Off-Hours)	Group: Facilities Team	Enter/Exit	Zone: HVAC Mechanical Room	Time: Outside 07:00 to 19:00
5. Visitor Access to Common Areas	Group: Visitors	Enter	Zone: Lobby & Cafeteria	Escort: Employee ID: 12345 (must be present) $\wedge$ Time: Before 17:00
6. Emergency Exit Usage	Group: All Users	Exit	Site: Any Exit Door	Alarm: Fire Alarm is Active
7. Contractor Access to Site	Group: Contractors	Enter	Site: Main Campus Building A	Date: Today is before Contract End Date $\wedge$ Time: 09:00 to 16:00

ABAC

Format for the PIP.

apiVersion: kyverno.io/v1
kind: ClusterPolicy
metadata:
  name: abac-enroll-restriction-time-bound
  annotations:
    policies.kyverno.io/description: |
      Restricts the 'ENTER' operation on 'Facility' resources labeled 'location:
      "production-room"' to users possessing the 'training-vde-available-group' attribute.
      This restriction is only enforced during a critical,
      specific time window (2025-10-20T08:00:00Z to 2025-10-20T09:00:00Z) for members of the 'employee-group'.
spec:
  validationFailureAction: Enforce # Immediately block request
  background: false
  rules:
    - name: deny-enroll-without-training-vde
      match:
        # 1. Subject Attribute: The group must be 'employee-group'
        subjects:
          - kind: Group
            name: employee-group

        # 2. Resource Attribute: The target resource must be one of the locations
        resources:
          kinds:
            - Facility # Example: A Custom Resource for physical facilities
          selector:
            matchLabels:
              location: "production-room"
              # NOTE: A second rule or a more complex match for 'storage-room' would have to follow here.

        # 3. Operation Attribute: The operation 'Enroll' (assumed as UPDATE)
        operations:
          - ENTER
          - EXIT

      # TEMPORAL PRECONDITION: The rule is ONLY executed if the time is within the window.
      preconditions:
        all:
          # Define the 1-hour window
          - key: "{{ time_between('{{ time_now_utc() }}', '2025-10-20T08:00:00Z', '2025-10-20T09:00:00Z') }}"
            operator: Equals
            value: true

      # The ABAC logic (is only executed if the time condition is TRUE)
      deny:
        conditions:
          all:
            # Condition 1 (Positive Group): User is in the main group (Redundancy/Clarity)
            - key: employee-group
              operator: AnyIn
              value: "{{ request.userInfo.groups }}"

            # Condition 2 (Negative Attribute Check): The training attribute is missing
            - key: "training-vde-available-group"
              operator: AnyNotIn
              value: "{{ request.userInfo.groups }}"

      validate:
        message: "ATTENTION: The 'Enroll' operation is only allowed for qualified personnel ('training-vde-available') during the critical time window (08:00-09:00 UTC).

Additional information for PIP. About "training-vde-available-group".

employees:
  - name: Anya Sharma
    id: ES-4902
    groups:
      employee-group: true
      training-vde-available-group: true
  - name: Ben Carter
    id: BC-3115
    groups:
      employee-group: true
      training-vde-available-group: false
  - name: Chloe Davis
    id: CD-8877
    groups:
      employee-group: true
      training-vde-available-group: false
  - name: David Lee
    id: DL-1020
    groups:
      employee-group: true
      training-vde-available-group: true
  - name: Eve Rodriguez
    id: ER-5566
    groups:
      employee-group: true
      training-vde-available-group: false

Cell: BPM

Similar to Camunda BPM, or forks https://cibseven.org/preise/ - 71 forks and 219 stars

Cell: IAM KeyCloack

Should provide IAM for upper service.

Outcome: understand multi-tenancy, realms

Integrate "Keycloack"

Cell: Authorization and Policy Decision Point

Integrate "Kyverno" as "POlicy Decision POint" https://www.strongdm.com/what-is/policy-decision-point-pdp

Cell Analytics

Should take data from upper Service

Cell: Kestra.io

Outcome: To get data from my service and put it into the raw data layer

analytical databases 1 : DuckDB

DuckDB

analytical databases 2 : Clickhouse

Clickhouse

SuperSet

AI Dashboard

Cell: local RAG

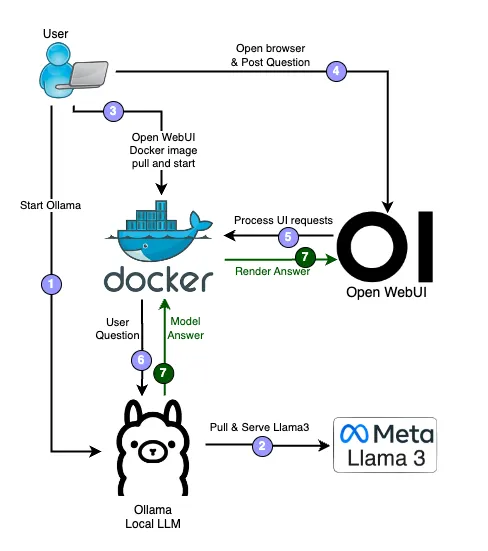

Deployment overview https://medium.com/@miroslavmerreider/unlocking-the-power-of-local-offline-retrieval-augmented-generation-with-ollama-and-open-webui-19cd0bc67e81

Example with RAG https://github.com/alexandrainst/alex-rag-webui

• Start Ollama: The user initiates the Ollama application, which acts as the server for the local LLM.

• Pull & Serve Llama 3: Ollama connects to the internet to download the Llama 3 model from Meta's repository and loads it onto the user's machine, making it ready for processing requests. 3. Open WebUI Docker: The user runs Open WebUI as a Docker container, isolating the application and its dependencies.

• User Interaction: The user opens a browser, navigates to the Open WebUI interface, and enters a question.

• Process UI Requests: The Open WebUI container receives the user's question. It then sends this request to the Ollama server.

• Process Model Answer: Ollama receives the question, processes it using the Llama 3 model, and generates a response.

• Render Answer: The generated answer is sent back from Ollama to the Open WebUI container, which then displays the final response to the user's browser.

• Web Search for RAG: Perform web searches using providers like SearXNG, Google PSE, Brave Search, serpstack, serper, Serply, DuckDuckGo, TavilySearch, SearchApi and Bing and inject the results directly into your chat experience.

Flutter Mobile App.

Hello World to access my API.

Business Case of App

Use AI on Edge. Recognize hand written code (KLeiderbörse). Append to a Google Docs file, written in configured online store.

Columns

• code
• price
• date time
• complete recognized string

Constraints

Solution Strategy

Building Block View

Runtime View

Deployment View

Cross-cutting Concepts

Architectural Decisions

Problem	Decision	Optimize for attribute
Delivery package	Docker Cpmpose	Simplicity of deployment
Delivery inside of VM	Ansible	Simplicity of deployment
CICD	GitHub CICD

Quality Requirements

Risks and Technical Debt

Glossary
